MAF Pocket Filter Series

Hydrogard

Coalescer, Pre and Fine Efficiency Pocket Filter Series

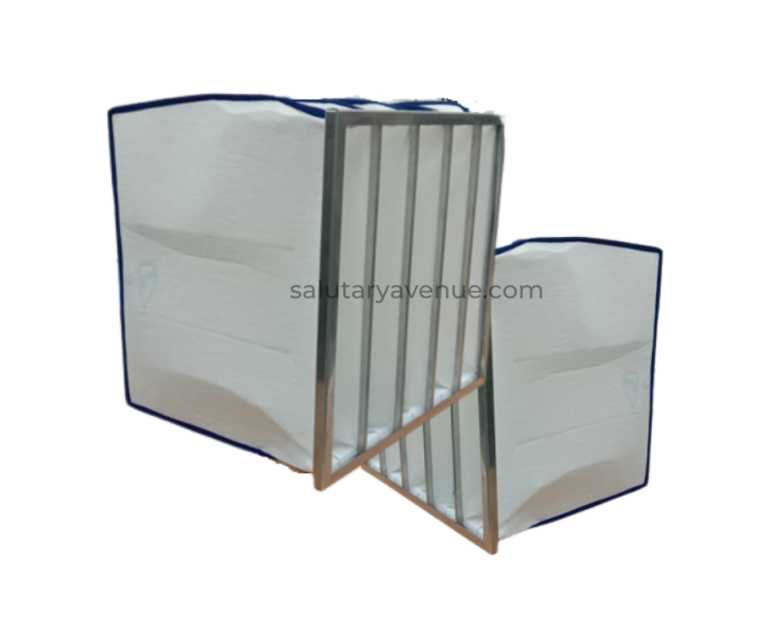

HYDROGARD POCKET FILTER range is specifically designed for reliable performance in challenging environments. Its use case focuses on high humidity, fog, mist and high water content locations under high velocity applications, employing hydrophobic elements in its design. It also has a robust construction and is rigorously tested to ensure uninterrupted performance of the rotating asset.

These filters are designed to be used as coalescers, pre-filters or fine filters depending on operational requirements.

Product Specifications

Product Specifications	UOM	Product Models
Product Specifications	UOM	Hydrogard C	Hydrogard XV
Measured Face (W X H)	-	Customizable
Total Depth (D)	mm	350 - 650	600 - 650
No. of Pockets	-	Custom number of pockets available
Effective Filtration Area	m2	Differs based on number of pockets. Contact our service representative for more details.
Frame Thickness	mm	22	22
Frame Material	mm	Options: Plastic, Aluminium, Galvanised Iron, Stainless Steel
Media Type	-	High-strength progressively structured polyester with hydrophobic treatment option
Filtration Efficiency Options	EN779: 2012*	G4, M5, M6, F7
Product Variation Available	-	Reverse Flow, Nested Configuration

*Products tested to EN1822, ISO 16890, and ISO 29461 standards.

Applications

Gas Turbines
Industrial Air Compressors
Engines
Generators and enclosures

Designed for Offshore, Oil and Gas and for humid and challenging high water content environments.

Features

Suggested Configuration

Enhances turbine and compressor performance with MAF Multi-Stage Filtration System by ensuring cleaner air through multiple filtration levels.

Two-Stage Filtration System features a coarse filter for large particles and a high-efficiency fine filter for smaller contaminants, enhancing equipment reliability and reducing maintenance costs. For even more comprehensive protection, Three-Stage Filtration System includes a pre-filter/coalescer to capture large particles and moisture, a fine filter for additional contaminants, and EPA or HEPA standard filters for the finest pollutants, ensuring exceptional air and gas quality and maximizing equipment longevity.
